Product overview

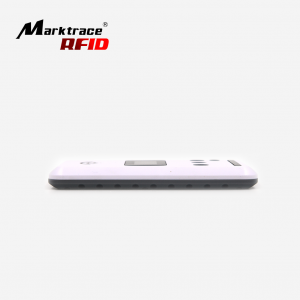

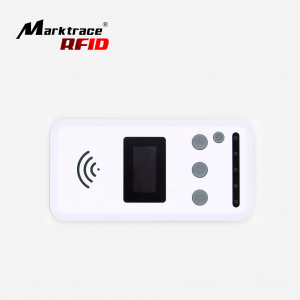

• MR6052B is a portable handheld RFID reader, operation is simple, it Support Bluetooth to?transmit data. The device can be applied in parking lots, Animal Husbandry, and Logistic.
• Characteristic：
• 1. Support ISO18000-6C (EPC-GEN2) protocol.
• 2. High efficient reading range.?Frequency can be set up. Can be used in domestic and overseas.

Product parameters

• Model?MR6052B
• Working Frequency?ISM 902~928MHz or ISM 865~868MHz
• Protocol?ISO18000-6C, EPC Gen2
• RF Power?MAX 30dBm, software adjustable
• Identify Distance?Up to 2 meters (maximum)
• Indication?One buzzer inside
• Data Interface?Bluetooth 2.0，USB 2.0
• Bluetooth Communication Distance?15 meters
• Power Supply?3.7V 1000mAh lithium battery
• Processor?ARM 32-bit CortexTM-M3
• Memory?30KB (Store 2500pcs 96bits EPC code)
• Standby Time?9 hours
• Weight?85.2g
• Size?130mm*65mm*14.22mm
• Temperature?-5～40℃
